Nissan Navara D27 intercooler Pipe Combo 2025 Onwards
Nissan Navara D27 2025 onwards
This combo includes both the Aluminium Intake Pipe and our Intercooler throttle pipe replacement as combo.
CURRENT ORDER TIME - In stock, 2-3 days order processing time
Intercooler throttle Pipe:
- Reuse OEM C Clip
- Billet male CNC Fitting
- Dual Viton Fluro Carbon O-Ring Supplied
- 5 ply silicone joiner
- JCS Hi Grip Stainless steel hose clamps
- Suits OEM Intercooler Pipe
- Suit Nissan Navara D27 and Mitsubishi MV Triton
- OEM Replacement
- Australian Designed & Made
- Boost Gauge and AIT temp sensor ports available upon request
We have been working with this type of factory coupling for years, we know over time the factory seal will leak and the plastic pipe to throttle body S type rubber seal will fail.
Using our experience in making this type of pipe with our cnc couplings and fittings we have made a direct factory replacement to ensure there are no failures in the future. CNC billet fitting is internally tapered to match pipe size.
All aluminium, Tig welded and CNC machined to the very highest of quality.

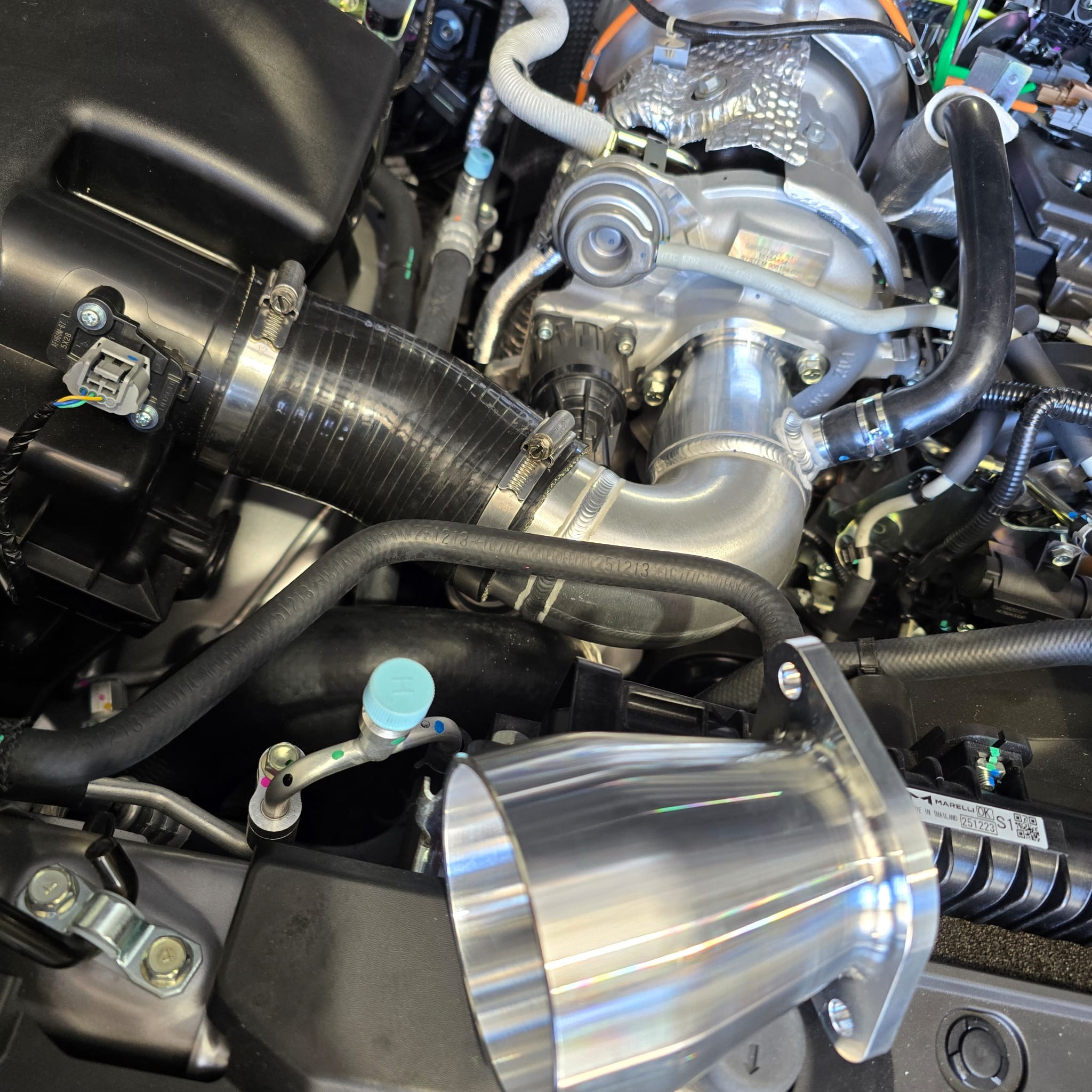

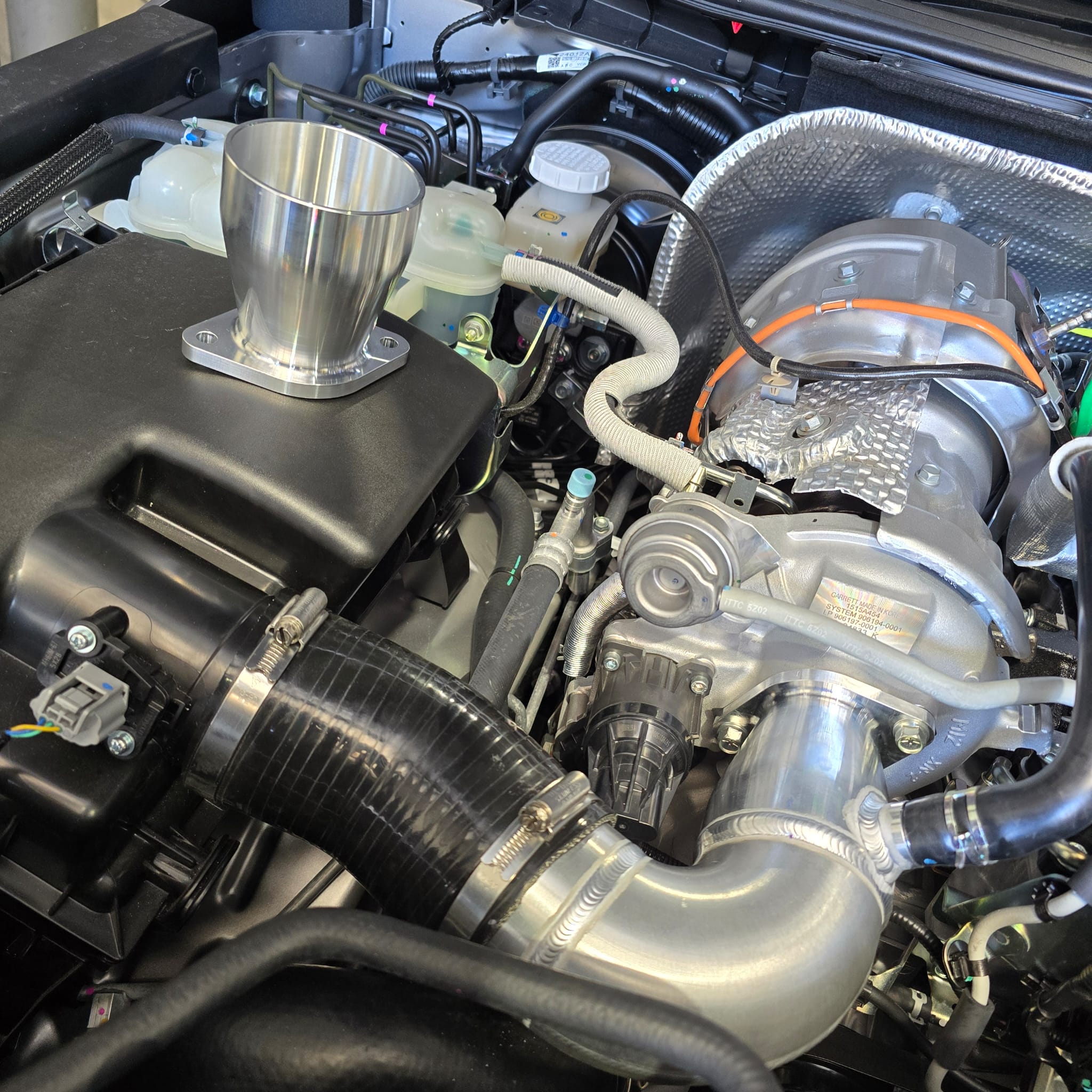

Pictures show the pipe fitted to our Rnd vehicle which has additional boost and temperature sensor ports. if you would like similar ports then please contact us prior to ordering.
Intake pipe:
Billet CNC Aluminium replacement for the factory cast intake pipe and corrugated rubber pipe to airbox
- Beautiful CNC Billet Bolt flange plate and taper up to 3inch
- Aluminium push on hose fitting for breather
- 5 ply silicone joiner
- JCS Hi Grip Stainless steel hose clamps
- Replaces OEM factory intake Pipe
- Suit Nissan Navara D27 and Mitsubishi MV Triton
- Australian Designed & Made
- Silicone pipe bend will require to be cut to size so it also suits other airboxes.
We have made this intake pipe to match the airbox outlet internal diameter as far as possible with a smooth CNC taper down to the turbo inlet size.
