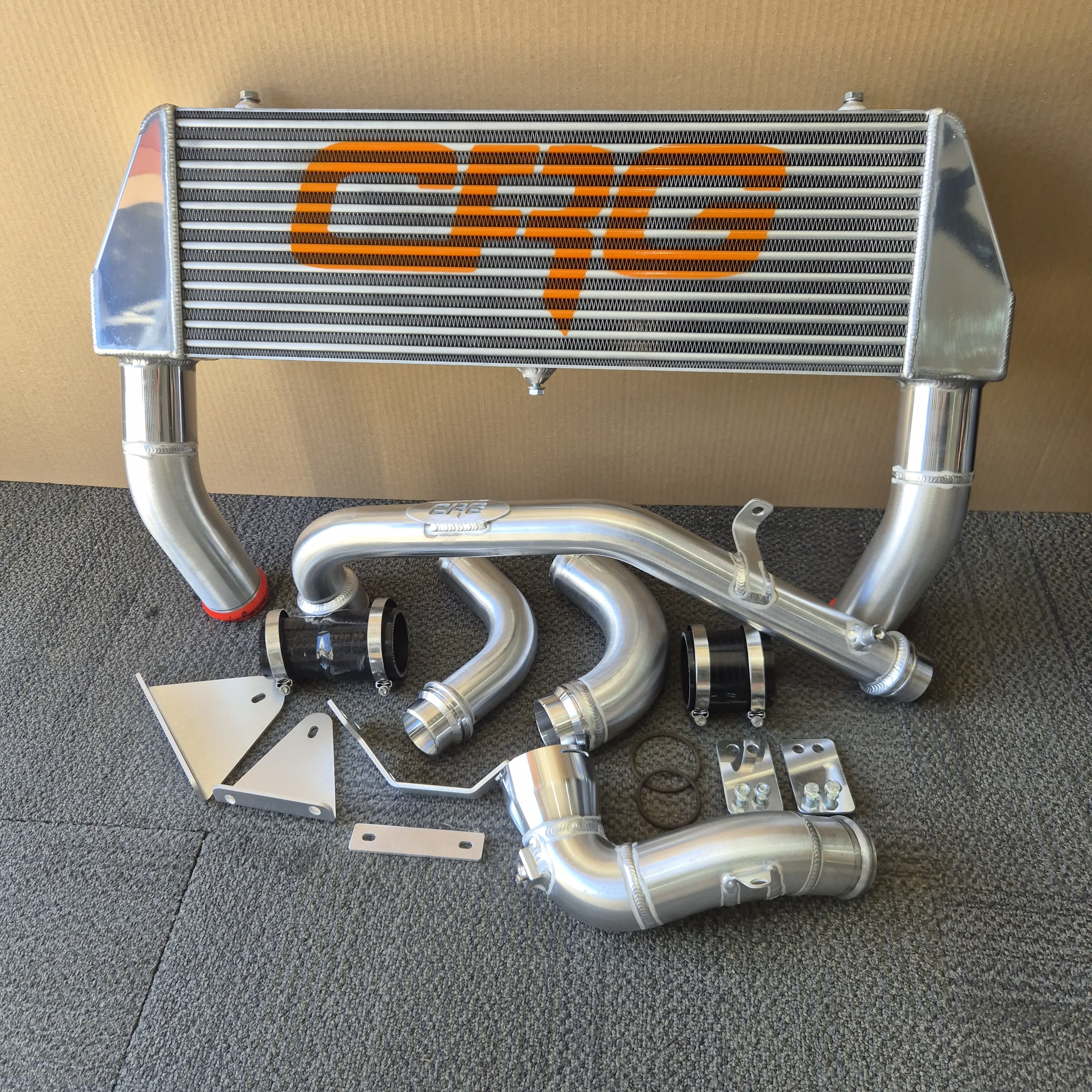

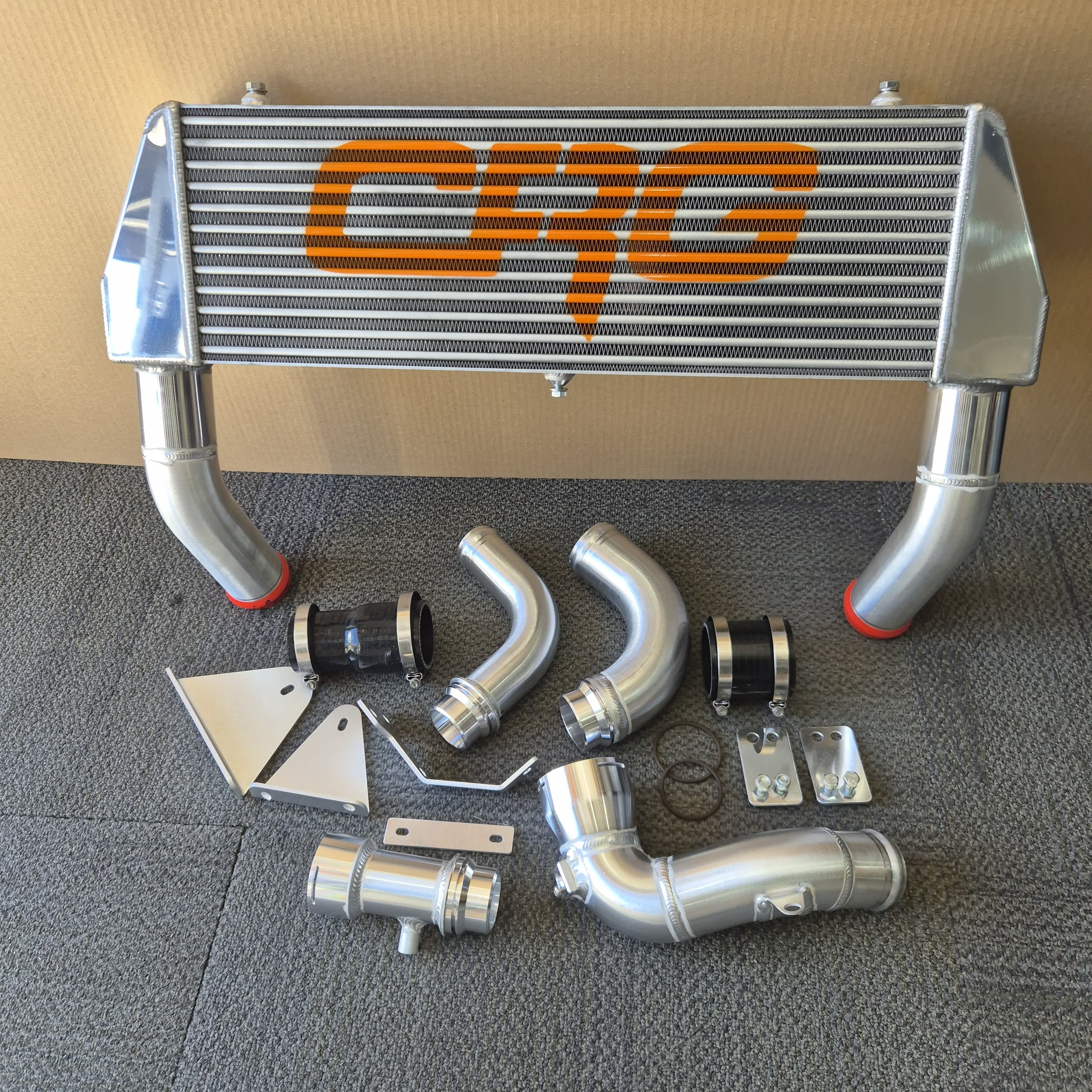

Navara NP300 CRG Racer Series Intercooler Kit

CURRENT: Back order, estimated up to 10-12 weeks back order processing time

Options	Price
Nissan Navara NP300 CRG Racer Series Intercooler Kit Only	$2,000
Optional Combo Upgrade add $600 - inc Twin turbo Hot pipe and throttle pipe	$600
Optional Combo Upgrade add $570 - inc Single turbo Hot pipe and throttle pipe	$570

Intake temps improved by up to 40 degree in extreme environments

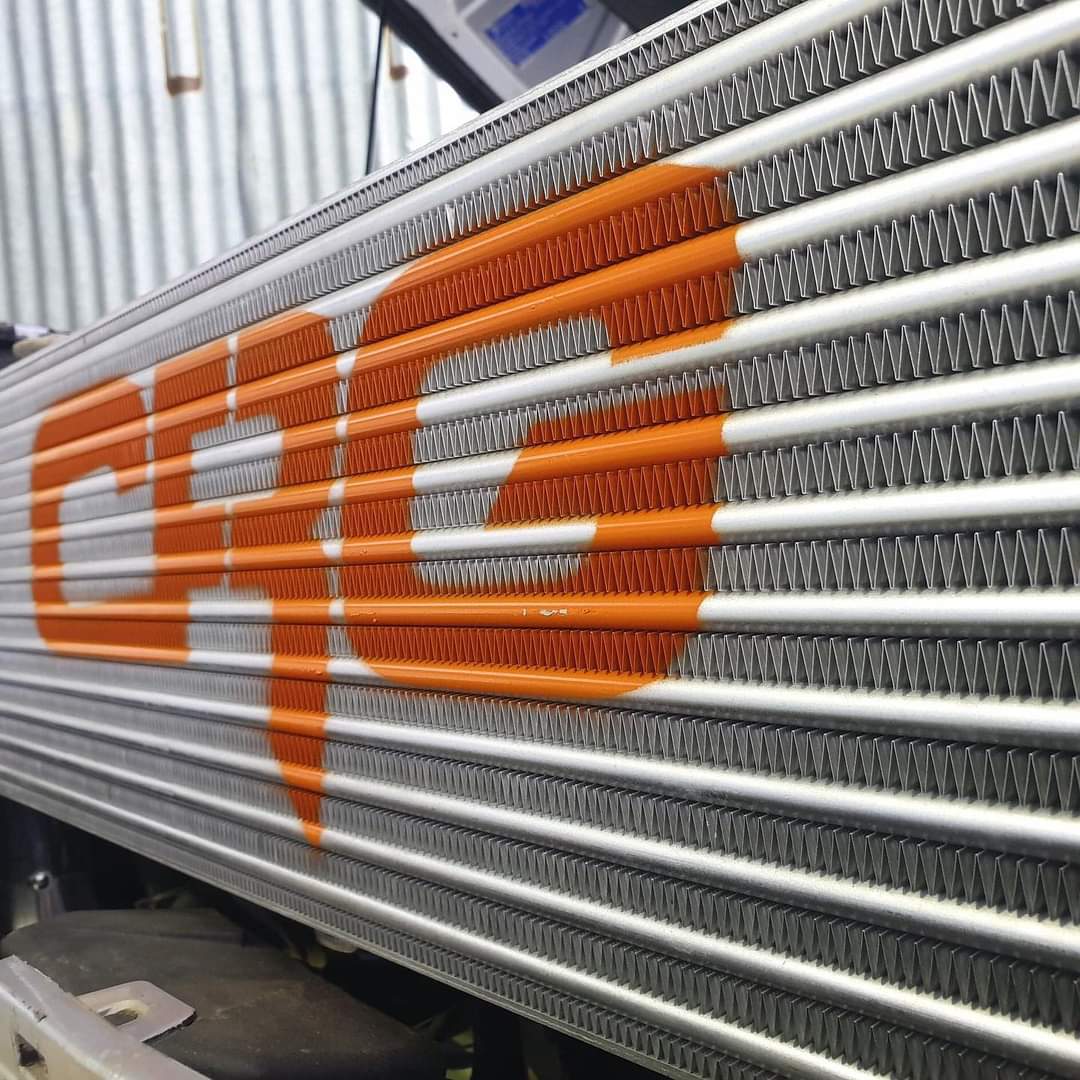

PWR Racer series high flow light weight Tube and fin core
CRG / PWR Custom Collaborated Designed Intercooler
JCS HI-GRIP 304 STAINLESS (A2) CLAMPS
Turbo Smart / Aeroflow Silicone Joiners
Proprietary CNC Coupler Fittings
Replacement O-Ring Seals
Retains OEM C Clips
Proudly 100% Australian made and owned
Suits NON Body Lift (Body Lift Version Available Here)
Winch & Bull Bar Compatible* (See notes in description below)

Will Fit Mercedes X250 with factory modification to the bumper bar mounts and bracing that holds internal polystyrene structure.

PWR Street Series Core vs Racer Series Core?

The PWR Racer Series core is statistically up to 60% lighter and 8% more efficient due to PWR’s extruded light weight tube design. This helps lower temps even quicker again especially in low range driving start stop, eliminating the need for fans and fancy gimmicks. Regardless of which intercooler you choose, fans are not need with either one of our Nissan Navara NP300 intercooler kits. Is it worth the difference? If you want the best of the best from the best for your car, then yes the Racer is the way to go!

PWR Intercooler Features

Low restriction internal turbulators
Leading edge tube wall thickness is efficient for strength
Light weight
World class TIG welding
State of the art controlled atmosphere brazing process
Race and street proven performance
Hi-tech CAD design division
Pressured tested and guaranteed
Flow tested

BULL BAR FITMENT*

Our intercooler kit is designed to fit with the factory Navara bumper bar, it will also fit with some aftermarket bull bars with smaller mounting brackets.

We know This kit suits Ironman Commercial Deluxe, Shoreline*, PSR Ambush and a few other bull bars that mount on the front face of the chassis rail but we recommend our bull bar specific kit if you are unsure of the mountings.

This kit does not fit aftermarket bull bars with over sized mountings that are inboard of the chassis rail where the intercooler piping needs to go.

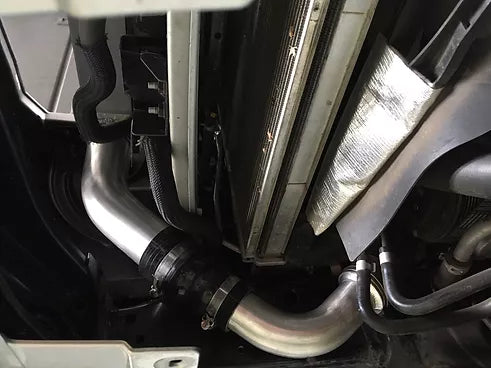

When installing it is important to ensure there is 10-15mm of clearance between the intercooler pipes and anything else around it to ensure there will be no fouling and damage to the piping.

*Shoreline bull bars will require a small amount of grinding to remove around 10mm of material where the pipes pass the bull bar to ensure they don't rub)

Please note We have found that WARN winches DO NOT fit with internally mounted winch position in most bull bar and with our intercooler piping. Warn winches are too wide and do not suit the application, Similar issue with winches that have there control box built into the end cap of the winch, there overall width is too wide for internal fitment

We do have a different pipe option you will need to contact us about.
Some bull bars do require minor material removal on the side of the bull bar beams and or mounting brackets that are unnecessarily over sized.

Bull bars that this does not suit includes but is not limited to:

*NON OF OUR KITS SUIT HAMMER BULL BARS* CLICK HERE FOR MORE INFORMATION

BODY LIFT

This kit is made for NON body lift vehicles. But it will also suit a 1″ inch body lift but may need a longer 2.5 inch silicone joiner on the passenger side.

Optional Combo Upgrade $600 *

Twin Turbo Hot Pipe & Throttle Pipe - Save $250
